About CITS

cits is a Python package that implements the Causal Inference in Time Series (CITS) algorithm for inferring causal relationships (and their strengths) from time series data. It uses the non-parametric approach of structural causal modeling that does not assume specific dynamical equation for the time series and uses a Markovian condition of arbitrary but finite order on the time series.

An application of interest is in neural connectomics to estimate the causal functional connectivity between neurons from neural activity time series.

  • Causal functional connectivity: The representation of the flow of information between neurons in the brain based on their activity is termed the causal functional connectivity (CFC). The CFC is not directly observed and needs to be inferred from neural time series.

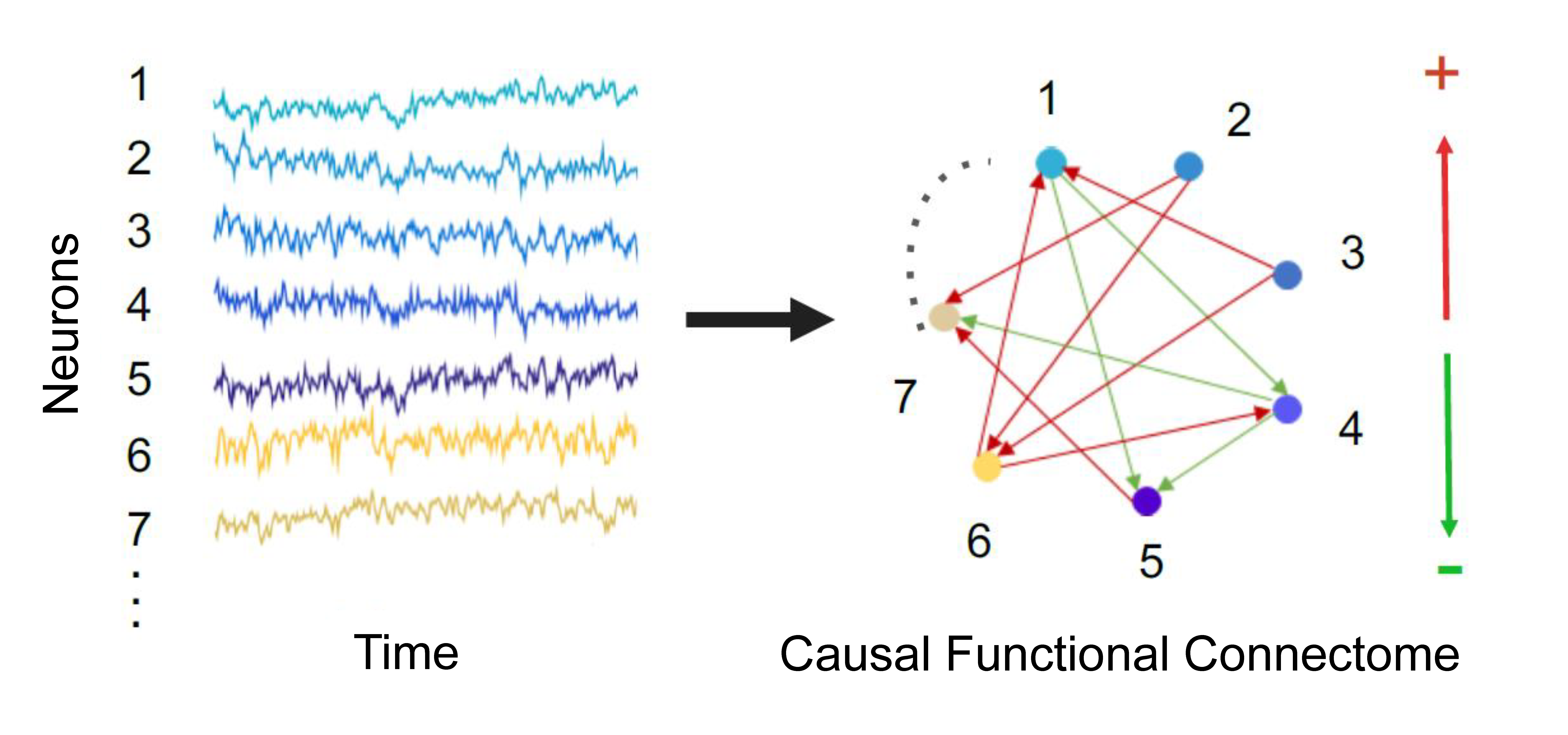

_images/Schematic.png

CITS is non-parametric and does not require knowledge of dynamical equations of time series (e.g. time series of neural activity).

CITS is shown to have mathematical guarantee in estimating the true causal graph under 1) widely applicable conditions on the underlying time series, and 2) whenever the data is recorded at a finer time granularity than the time lag of causal effects to ensure no concurrent causal effects. Examples of such datasets in neurosciences include recordings by the popular Neuropixels technology in animal models, where neurons are recorded at 30 KHz sampling rate yielding one sample per 0.03 ms while neural synaptic transmission has a delay of 0.5-1 ms for adjacent neurons and longer for non-adjacent neurons.

CITS is shown to have greater efficacy than the recent Time-Aware PC algorithm when there are no concurrent causal effects.
